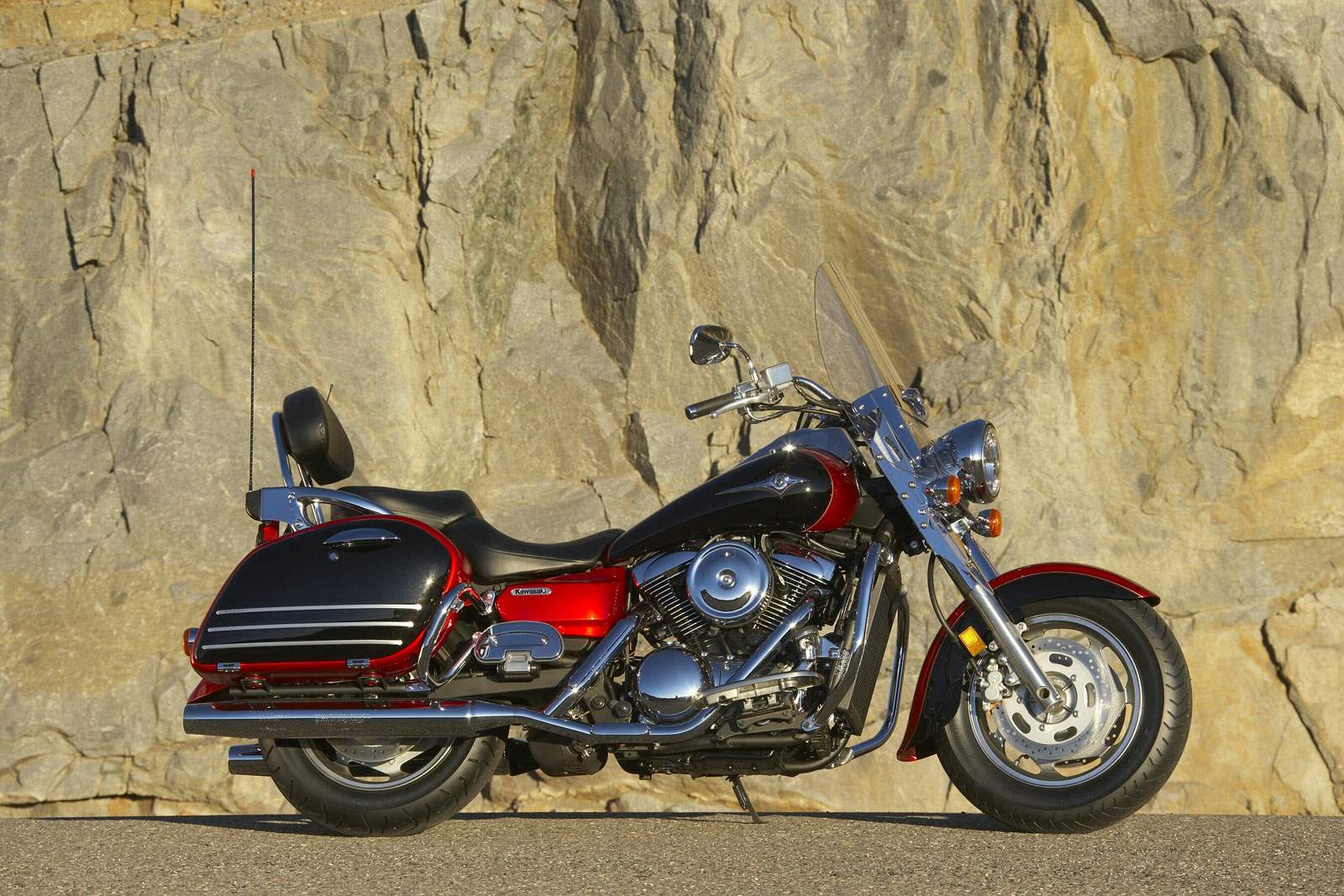

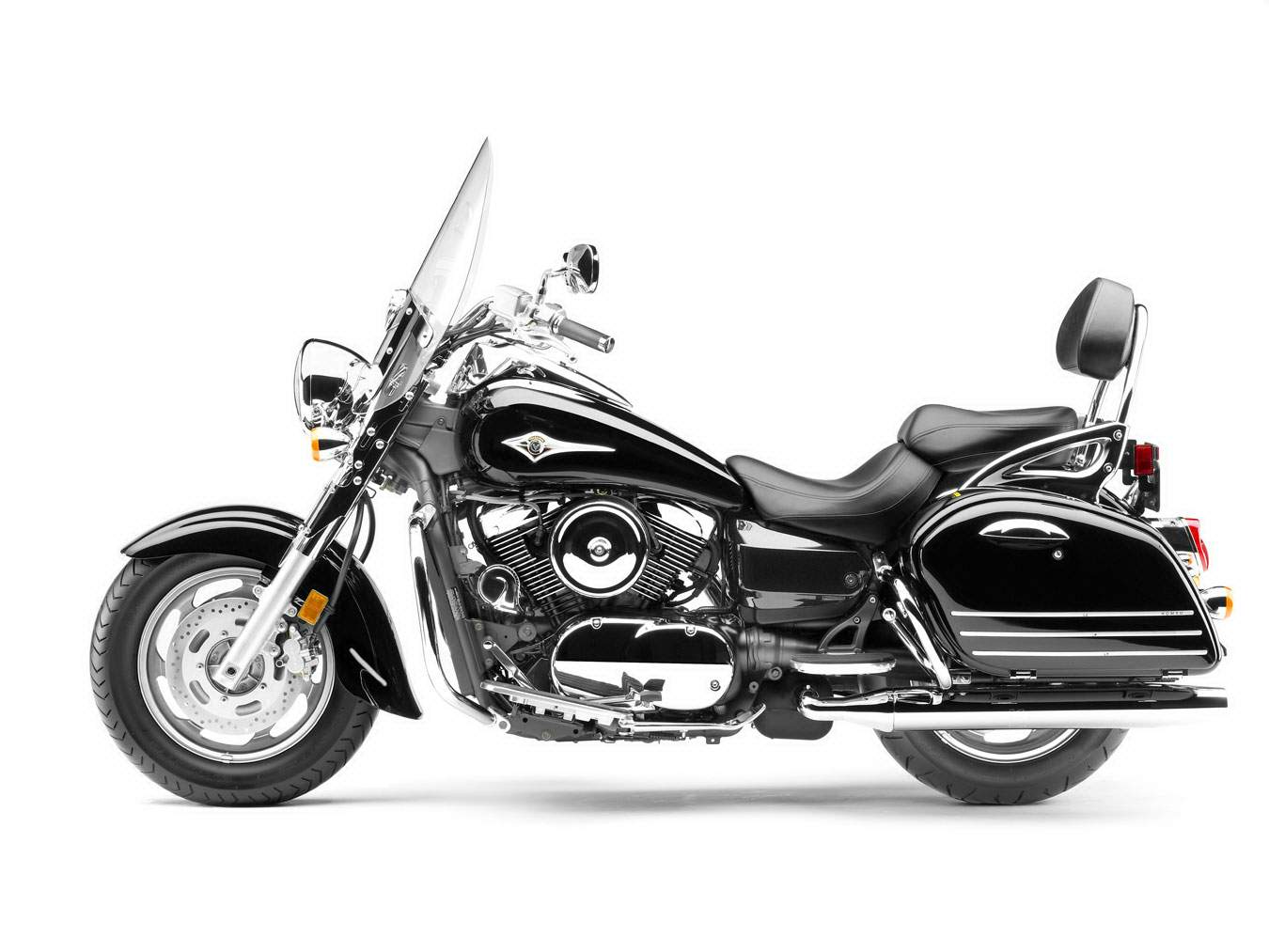

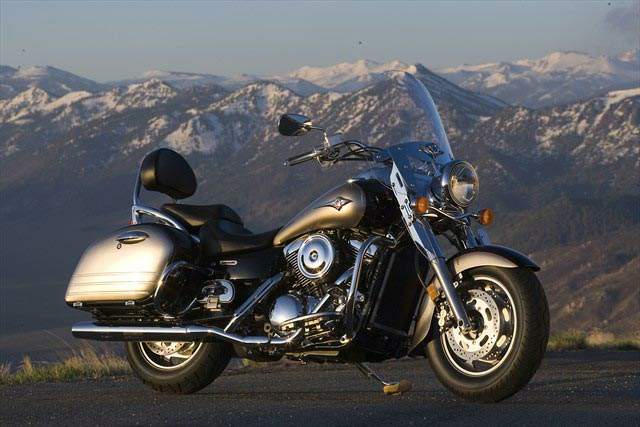

Kawasaki VN 1600 Vulcan Nomad
| Make Model | Kawasaki VN 1600 Nomad |
| Year | 2007 - 08 |
| Engine | Four stroke, V-Twin, SOHC, 4 valves per cylinder |
| Capacity | 1552 cc / 94.7 cu-in |
| Bore x Stroke | 102 x 95 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 9.0:1 |
| Induction | Electronic fuel injection, 2 x 40mm throttle bodies |
| Ignition | Electronic |
| Starting | Electric |
| Max Power | 65.7 hp / 48 kW @ 4700 rpm |
| Max Torque | 127 Nm / 93.7 lb-ft @ 2700 rpm |
| Transmission | 5 Speed |
| Final Drive | Shaft |
| Front Suspension | 43mm inverted forks |
| Rear Suspension | Swingarm with dual air-assisted shocks, adjustable for rebound and preload |
| Front Brakes | 2x 320mm discs 6 piston calipers |
| Rear Brakes | Single 300mm disc 2 piston caliper |
| Front Tyre | 150/80 x 16 |
| Rear Tyre | 170/70 x 16 |
| Rake | 32.0� |
| Wheelbase | 1680 mm / 66.1 in |
| Seat Height | 706 mm / 27.8 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | 307 kg / 676.8 lbs |
| Fuel Capacity | 20 Litres / 5.2 US gal |
KAWASAKI�S VULCAN� 1600 NOMAD� BRINGS POWER AND STYLE TO THE TOURING CRUISER UNIVERSE
Sleek saddlebags and touring windscreen for the open road
True to its name, Kawasaki�s Vulcan� 1600 Nomad� is ready to travel and there�s no surprise this ready made touring-cruiser is a popular choice. Highlighted by a strong frame and excellent power from a 95-cubic inch V-Twin, the Nomad also has extensive touring features, a stylish appearance, and excellent riding dynamics.
Propelling this roaming beauty is a 1,552cc V-twin engine generating plenty of low-end torque and highway power to take its rider anywhere the road leads them. A gear-driven engine counter balancer and well-designed engine mounts reduce handlebar and floorboard vibration, yet these features do not interfere with the engine�s distinctive V-twin rumble or power-pulse feeling from its single-pin crankshaft.
Crucial on a laden tourer - as when maneuvering in parking lots - the 1600 Nomad�s steering geometry is designed so that the motorcycle feels more neutral at low speeds, while an air-adjustable rear suspension allows the Nomad to maintain the correct geometry even when loaded with a passenger and luggage.
The 1600 Nomad is highlighted by several standard chrome and creature comforts: Chrome engine guards and a thick passenger seat equipped with a backrest and aluminum grab bars. Floorboards for the rider and passenger combine to make long-distance rides more comfortable and pleasurable. Streamlined and stylish hard saddlebags are standard fare and provide generous storage for those overnight rides.
Self-canceling turn signals, a 5.3-gallon fuel tank, topped by an elegant electronic speedometer and LED odometer/tripmeter display let Nomad owners fully enjoy their ride. Other standard features such as an adjustable windshield, plush air-assisted rear suspension and adjustable levers tailor the Nomad to its rider.
FEATURES:
V-Twin Engine
- 1,552cc (95 cu. in.) engine delivers gutsy acceleration and a broad spread of satisfying power
- Oversquare 102 x 95mm bore and stroke helps ensure punchy response
- Digital Fuel Injection with dual 36mm throttle bodies
- Four valves per cylinder provide maximum valve area for optimum flow
- Dual mufflers allow more clearance for saddlebags
Liquid-Cooling
- Maintains consistent engine temperatures for long engine life and sustained power
- Auxiliary fan keeps things cool during all operating conditions
Gear-Driven Engine Balancer
- Counter-rotates at engine speed to cancel vibration
- Allows use of single-pin crankshaft for the desirable power-pulse feeling
Rubber-Mounted Engine
- Virtually eliminates all engine vibration
Five-Speed Transmission
- Great around-town acceleration with relaxed highway cruising
- Positive neutral finder, just lift the shift pedal from first at a stop to find neutral easily
Triple Disc Brakes
- Dual discs up front for maximum stopping power
- Large, single rear disc because touring bikes carry so much of the load on the rear wheel
5.3-Gallon Fuel Tank
- Rounded-edge finish for clean, upscale look
- Large capacity allows extended touring range
Shaft Drive
- Reliable, clean and quiet low-maintenance system
Air-Adjustable Rear Shocks
- Rebound damping is four-way adjustable to tailor fit the ride
Large, Adjustable Windshield
- Adjustable up and down two inches, it gives excellent rider and passenger weather protection
- Heavy-duty chromed support hardware holds the windshield rock steady
Hard Saddlebags
- Designed for easy packing, these saddlebags carry an amazing amount of gear
- Lockable, side-open design for smooth looks and quick access
- Soft, removable inner bags available as an optional accessory
- Color-matched for integrated style
Passenger Comfort
- Floorboards, standard backrest and thick seat provide maximum passenger comfort on long rides
